Color filters¶

Color filters transform colors before the card renders them.

They are useful when you want to reuse an existing layout or palette but change its overall appearance. For example, you can make a card grayscale, reduce saturation, adjust opacity, create a monochrome design, or apply a duotone effect.

Unlike browser CSS filters, color_filter does not place a visual effect over the rendered card. The card first resolves the configured color and then transforms it into a regular RGB or RGBA value before rendering.

This means color_filter works with concrete color properties such as fill, stroke, color, stop-color, and flood-color.

Examples¶

The following cards demonstrate several ways to apply color filters.

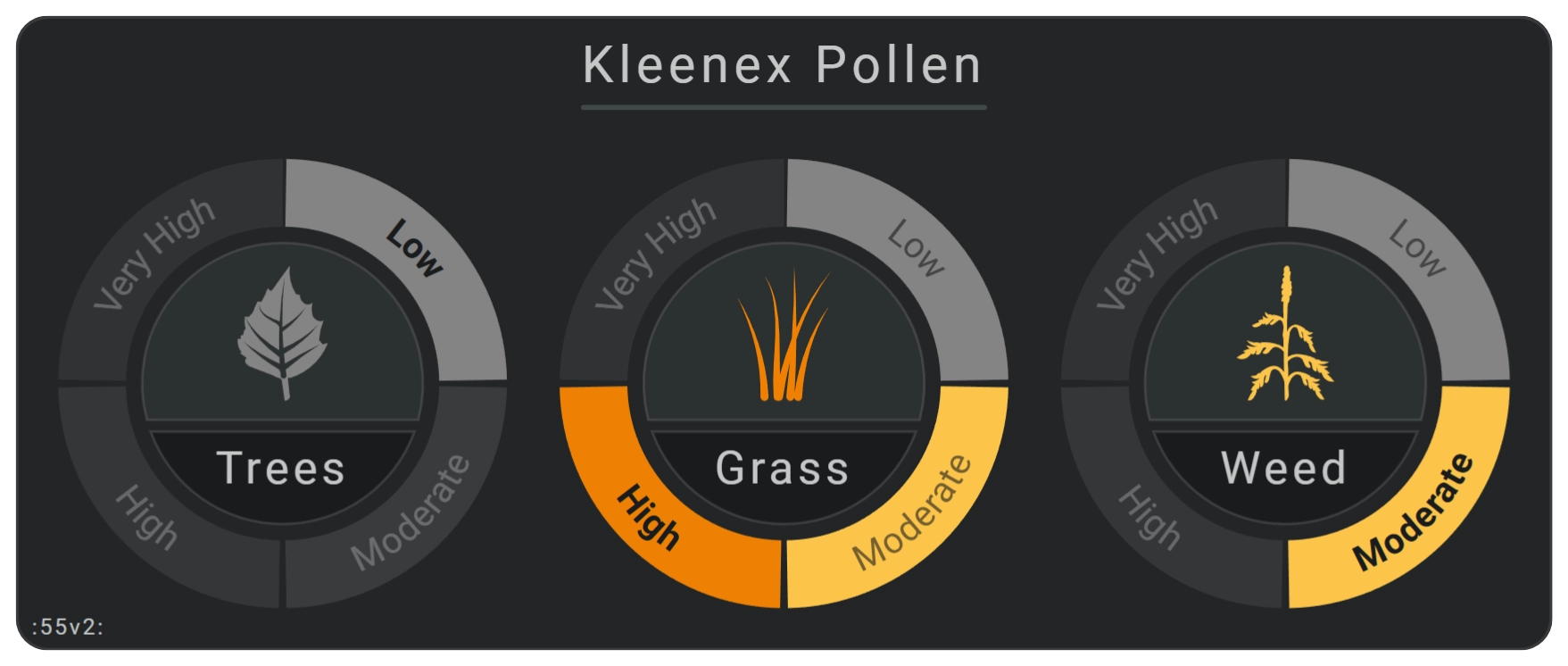

Card 55 keeps the original pollen colors for the active horseshoe state but applies a grayscale range to the horseshoe scale. The scale still uses color stops internally, while the filter converts the rendered scale colors to gray so the active segments stand out more clearly.

1
2
3
4
5
6
7
8
9

horseshoe_scale:
  min: 0
  max: 4
  width: 27
  linecap: butt
  color_filter:
    grayscale:
      min: 0.2
      max: 0.6

Card 54 applies grayscale and lightness filters at the card level.

1
2
3
4
5
6

- type: custom:flex-horseshoe-card
  color_filter:
    grayscale: 0.6
    lightness:
      min: 0.2
      max: 1

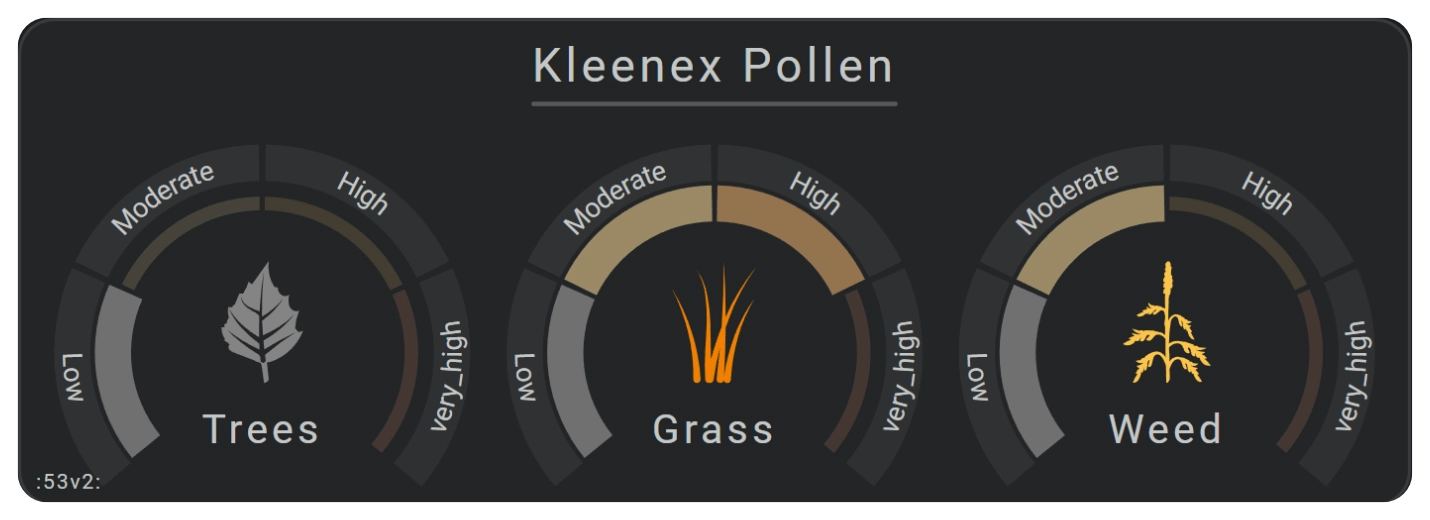

Card 53 uses a similar card-level filter with a different grayscale and lightness range:

1
2
3
4
5
6

- type: custom:flex-horseshoe-card
  color_filter:
    grayscale: 0.7
    lightness:
      min: 0.3
      max: 0.7

The final comparison shows:

• the original card on the left;
• the same card with a teal monochrome filter on the right.

The central arc background keeps its original color because inheritance is disabled for that item.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

- type: custom:flex-horseshoe-card
  color_filter:
    monochrome:
      color: teal
      amount: 0.8
    preserve_neutral: true
    lightness:
      min: 0.2
      max: 1

<...>
  layout:
    arcs:
      - xpos: 50
        ypos: 50
        radius: 30
        arc_degrees: 300
        color_filter:
          inherit: false
        styles:
          - fill: var(--disabled-text-color)
          - opacity: 0.3

Basic idea¶

Configure a filter with color_filter.

1
2

color_filter:
  grayscale: 1

This converts supported colors to full grayscale.

Smaller values preserve more of the original color:

1
2

color_filter:
  grayscale: 0.4

This blends the source color with its grayscale equivalent.

Supported color properties¶

Color filters apply only to concrete color properties resolved by the card.

Values such as none, currentColor, inherit, and url(...) are skipped because they do not represent concrete colors that the card can transform directly.

Where color filters can be used¶

color_filter follows the same general inheritance model as styling. Higher levels can define defaults, while lower levels can extend or override them.

The final filter is assembled from the active levels in order. Lower-level settings can refine or replace values inherited from higher levels.

Inheritance¶

Color filters cascade from higher levels to lower levels by default.

For example, a card-level filter affects all supported items unless a lower level changes or disables it.

1
2
3
4
5
6
7
8

color_filter:
  saturation: 0.5

layout:
  states:
    - entity_index: 0
      xpos: 50
      ypos: 50

Here, the state item inherits the card-level saturation filter.

Use inherit: false to stop inheriting filters from higher levels:

1
2
3
4
5

layout:
  groups:
    warning:
      color_filter:
        inherit: false

After inherit: false, only filters defined at that level or below remain active.

Global and property-specific filters¶

A filter can apply to all supported color properties:

1
2

color_filter:
  grayscale: 1

You can also target an individual property, such as fill or stroke:

1
2
3
4
5
6

color_filter:
  fill:
    grayscale: 1

  stroke:
    saturation: 0.4

For each property, the card combines global and property-specific settings. Property-specific values take precedence.

1
2
3
4
5

color_filter:
  saturation: 0.5

  fill:
    saturation: 1

In this example, most supported color properties use saturation: 0.5, while fill uses saturation: 1.

Processing order¶

The processing order is fixed and cannot be rearranged in the configuration.

source color
-> resolve CSS color or CSS variable to RGBA
-> grayscale
-> monochrome
-> duotone
-> lightness
-> brightness
-> contrast
-> saturation
-> opacity
-> RGB/RGBA for render

The card first resolves the source to a real color. It then applies the configured filters in this order and renders the final RGB or RGBA value.

Supported filters¶

The following filters are supported:

The following filters are not currently supported:

• theme_monochrome
• theme_duotone
• hue rotation
• tint
• invert
• sepia
• threshold

Grayscale¶

grayscale converts colors toward grayscale.

A value of 1 produces full grayscale:

1
2

color_filter:
  grayscale: 1

A value between 0 and 1 blends the original color with the grayscale result:

1
2

color_filter:
  grayscale: 0.4

You can also map the source lightness to a grayscale range:

1
2
3
4

color_filter:
  grayscale:
    min: 0.25
    max: 0.85

This preserves relative lightness differences while constraining the result to the configured range.

Lightness¶

lightness changes OKLCH lightness.

A numeric value sets an absolute lightness:

1
2

color_filter:
  lightness: 0.7

A range maps the current lightness between min and max:

1
2
3
4

color_filter:
  lightness:
    min: 0.2
    max: 0.9

This preserves relative differences between colors while keeping them within the configured range.

Monochrome¶

monochrome maps colors to one color family while preserving the source lightness.

The simplest form accepts a color:

1
2

color_filter:
  monochrome: teal

The object form also lets you control the strength:

1
2
3
4

color_filter:
  monochrome:
    color: teal
    amount: 0.6

An amount of 1 applies the full monochrome result. Lower values blend it with the original color.

Duotone¶

duotone maps colors between two endpoint colors.

The source lightness determines the mix position between the dark and light colors:

1
2
3
4

color_filter:
  duotone:
    dark: '#1B4965'
    light: '#C2E7F0'

You can also control the strength with amount:

1
2
3
4
5

color_filter:
  duotone:
    dark: '#1B4965'
    light: '#C2E7F0'
    amount: 0.7

An amount of 1 applies the full duotone result. Lower values blend it with the original color.

Preserve neutral colors¶

preserve_neutral keeps black, white, and neutral gray unchanged when using monochrome or duotone.

1
2
3
4
5

color_filter:
  monochrome:
    color: teal
    amount: 1
  preserve_neutral: true

This is useful when restyling a card while keeping text, dividers, and neutral backgrounds readable.

Brightness¶

brightness multiplies OKLCH lightness.

1
2

color_filter:
  brightness: 1.1

Values above 1 make colors brighter. Values below 1 make them darker.

Contrast¶

contrast moves RGB channels away from or toward middle gray.

1
2

color_filter:
  contrast: 1.05

Values above 1 increase contrast. Values below 1 reduce it.

Saturation¶

saturation multiplies OKLCH chroma.

1
2

color_filter:
  saturation: 0.8

Values below 1 reduce saturation. Values above 1 increase it.

Opacity¶

opacity multiplies the current alpha channel.

1
2

color_filter:
  opacity: 0.7

It does not replace the existing alpha value. For example, a color with an alpha of 0.8 combined with opacity: 0.5 renders with an alpha of 0.4.

Color filters and color stops¶

Color stops and color filters perform different tasks.

Color stops select a color from a value. A color filter can then transform the selected color before rendering.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

layout:
  horseshoes:
    - entity_index: 0
      xpos: 50
      ypos: 50
      radius: 40
      color_stops:
        colors:
          0: green
          50: yellow
          100: red
      color_filter:
        saturation: 0.7

In this example, the color stop first selects green, yellow, or red. The filter then reduces the saturation of that selected color.

Theme-aware color stops and filters¶

Theme-aware color stops are related to color_filter, but they are configured separately.

Color stops can define different values for Home Assistant light and dark mode:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

color_stops:
  modes:
    light:
      colors:
        - value: 0
          color: green
        - value: 100
          color: red

    dark:
      colors:
        - value: 0
          color: red
        - value: 100
          color: green

The card first selects the active color-stop definition from the current Home Assistant theme mode. A color_filter can then transform the selected result:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

color_stops:
  modes:
    light:
      colors:
        0: green
        100: red
    dark:
      colors:
        0: '#4ade80'
        100: '#f87171'

color_filter:
  brightness: 0.95

Here, the active theme mode selects the color first, after which the brightness filter is applied.

Recipes¶

Grayscale scale with a colored state¶

Apply the filter only to the scale:

1
2
3
4
5

horseshoe_scale:
  color_filter:
    grayscale:
      min: 0.25
      max: 0.85

Do not apply the same filter to horseshoe_state when the active state should keep its original color-stop color.

Monochrome card with neutral text preserved¶

Apply a card-level monochrome filter and preserve neutral colors:

1
2
3
4
5

color_filter:
  monochrome:
    color: teal
    amount: 0.8
  preserve_neutral: true

This gives the card one consistent color family while keeping neutral text and dividers readable.

Fill only¶

Use a property-specific filter when only one color property should change:

1
2
3
4
5
6

color_filter:
  fill:
    duotone:
      dark: '#1B4965'
      light: '#C2E7F0'
      amount: 0.7

This applies the duotone filter only to fill.

Stroke only¶

1
2
3

color_filter:
  stroke:
    saturation: 0.4

This reduces saturation only for strokes.

Disable inheritance for one group¶

1
2
3
4
5

layout:
  groups:
    warning:
      color_filter:
        inherit: false

This prevents the group from inheriting color filters from higher levels.

Apply a filter to one layout item¶

1
2
3
4
5
6
7
8

layout:
  states:
    - entity_index: 0
      xpos: 50
      ypos: 50
      color_filter:
        brightness: 1.15
        saturation: 0.9

This affects only that state item.

Practical tips¶

Use a card-level color_filter for broad visual changes, such as making the complete card monochrome or reducing saturation throughout the design.

Use an item-level color_filter when only one visual element should change.

Use property-specific filters when fill and stroke need different behavior.

Add inherit: false when a group or item should ignore filters inherited from the card or a parent group.

Keep filter chains simple. A small number of well-placed filters is easier to understand and maintain than many overlapping definitions.

Use color stops to select colors from values. Use color filters to transform those colors afterward.

Troubleshooting¶

When a color does not change, first check whether it resolves to a concrete color. Values such as none, currentColor, inherit, and url(...) are skipped.

When the result differs from what you expect, remember that the processing order is fixed. For example, saturation is applied after brightness and contrast.

When too many elements are affected, check whether they inherit a card-level or group-level filter.

To make an item ignore inherited filters, add:

1
2

color_filter:
  inherit: false

When no color_filter is configured, the card renders the original colors unchanged.
