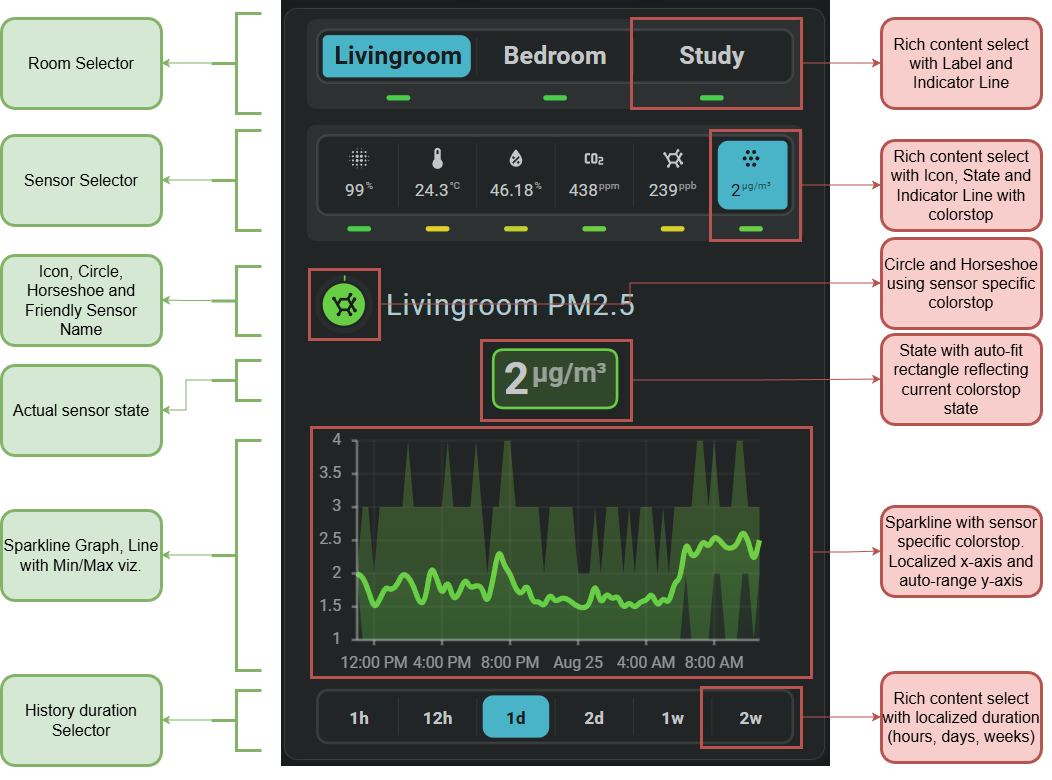

Awair Card Demo Card Awair card examples This interactive Awair card brings several indoor air quality measurements together in one view. Use the controls to select a room, choose the measurement you want to inspect, and change the displayed history period.
The current value, horseshoe, colors, name, unit, and history graph follow the selected measurement. This makes it possible to explore several Awair devices without filling the dashboard with a separate card for every sensor.
Description Aspect ratio Displays selectable measurements and history from several Awair air sensors. 1/1.4
Available controls Control type Options Room select Living room, study, or bedroom. Measurement select Awair score, temperature, humidity, CO2, VOC, or PM2.5. History select 1 hour, 12 hours, 1 day, 2 days, 1 week, or 2 weeks.
Selections can be shared by multiple FHS cards on the same dashboard. Changing a control can therefore update several related cards at once and keep their displayed room, measurement, or history period synchronized.
Demonstrated functionality Feature Demonstrated use Selection controls Switches between rooms, measurements, and history periods directly on the card. Horseshoe Displays the current measurement using its matching scale and colors. Sparkline history Shows the selected measurement over the chosen period. Adaptive layout Keeps labels, values, and controls readable when their content changes. Shared selections Keeps multiple cards synchronized while browsing the dashboard.
This example uses Awair sensors for the available rooms and measurements. Change the entity IDs in the card configuration to match the names used by your Awair integration.
YAML definition Definition of the interactive Awair card 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556 - type : custom:flex-horseshoe-card
entities :
# Tijdelijke selector totdat fhs_input_text bestaat.
- entity : fhs_input_number.awair_sensorc
initial : 0
scope : global
unit : ''
- entity : fhs_input_number.history_hours
initial : 24
scope : global
unit : 'h'
- entity : fhs_input_number.awair_room
initial : 1
scope : global
unit : ''
# Dynamische entity-slot. Alle weergegeven onderdelen gebruiken index.
- entity : |
[[[
const room = constants.awair_rooms[Number(entities[2].state)];
const sensor = constants.awair_sensors[Number(entities[0].state)];
return `sensor.awair_element_${room}_${sensor}`;
]]]
name : |
[[[
const room =
constants.awair_rooms[Number(entities[2].state)];
const sensor =
constants.awair_sensors[Number(entities[0].state)];
const entityId =
`sensor.awair_element_${room}_${sensor}`;
return states[entityId].attributes.friendly_name
.replace(/^Awair Element\s*/, '');
]]]
decimals : 1
constants :
entity_index_sensor : 0
entity_index_hours : 1
entity_index_room : 2
entity_index_awair : 3
awair_rooms :
- ''
- livingroom
- study
- bedroom
awair_sensors :
- score
- temperature
- humidity
- carbon_dioxide
- volatile_organic_compounds
- pm2_5
awair_color_stops :
- template :
name : fhs_colorstops_awair_score
- template :
name : fhs_colorstops_awair_temperature
- template :
name : fhs_colorstops_awair_humidity
- template :
name : fhs_colorstops_awair_co2
- template :
name : fhs_colorstops_awair_voc
- template :
name : fhs_colorstops_awair_pm25
awair_color_stop : |
[[[
return constants.awair_color_stops[
Number(entities[0].state)
];
]]]
get_value_from_item_id : |
[[[
return Number(item.id.split('--value-')[1]);
]]]
layout :
aspectratio : 1/1.4
groups :
- id : room
xpos : 50
ypos : 9
- id : sensor-buttons
xpos : 50
ypos : 25
- id : title
xpos : 50
ypos : 42
- id : value
xpos : 50
ypos : 60
- id : graph
xpos : 50
ypos : 95
- id : duration-buttons
xpos : 50
ypos : 131
compounds :
# ------------------------------------------------------------------------
# Room selector
# ------------------------------------------------------------------------
- id : room-selector
group : room
entity_index : calc(entity_index_room)
rectangles :
- id : background
xpos : 50
ypos : 50
width : 98
height : 13
radius : 2
styles :
fill : var(--divider-color)
fill-opacity : 0.5
- id : livingroom--value-1
xpos : 18
ypos : 50
width : 30
height : 9
radius : 2
styles :
fill : var(--secondary-background-color)
fill-opacity : 0.2
stroke : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-color)'
: 'var(--divider-color)';
]]]
stroke-opacity : 1
stroke-width : 1
tap_action :
haptic : selection
action : perform-action
perform_action : fhs_input_number.set_value
target :
entity_id : fhs_input_number.awair_room
data :
value : ref(get_value_from_item_id)
- id : study--value-2
same_as : livingroom--value-1
same_as_dxpos : 32
- id : bedroom--value-3
same_as : study--value-2
same_as_dxpos : 32
texts :
- id : livingroom--value-1
text : Livingroom
xpos : 18
ypos : 50
text_overflow :
mode : fit
fit :
max_width : 25
styles :
font-size : 0.8em
font-weight : 600
text-anchor : middle
dominant-baseline : central
fill : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-color)'
: 'var(--primary-text-color)';
]]]
- id : study--value-2
same_as : livingroom--value-1
same_as_dxpos : 32
text : Study
- id : bedroom--value-3
same_as : study--value-2
same_as_dxpos : 32
text : Bedroom
# ------------------------------------------------------------------------
# sensor selector
# ------------------------------------------------------------------------
- id : sensor-selector
group : sensor-buttons
entity_index : calc(entity_index_sensor)
rectangles :
- id : background
xpos : 50
ypos : 50
width : 98
height : 13
radius : 2
styles :
stroke : var(--divider-color)
stroke-width : 1
stroke-opacity : 0.5
fill : none
- id : sensor--value-0
xpos : 10
ypos : 50
width : 14
height : 10
radius : 2
styles :
fill : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-color)'
: 'var(--secondary-background-color)';
]]]
tap_action :
haptic : selection
action : perform-action
perform_action : fhs_input_number.set_value
target :
entity_id : fhs_input_number.awair_sensorc
data :
value : ref(get_value_from_item_id)
- id : sensor--value-1
same_as : sensor--value-0
same_as_dxpos : 16
- id : sensor--value-2
same_as : sensor--value-1
same_as_dxpos : 16
- id : sensor--value-3
same_as : sensor--value-2
same_as_dxpos : 16
- id : sensor--value-4
same_as : sensor--value-3
same_as_dxpos : 16
- id : sensor--value-5
same_as : sensor--value-4
same_as_dxpos : 16
texts :
- id : sensor--value-0
xpos : 10
ypos : 50
text : Score
text_overflow :
mode : fit
fit :
max_width : 12
styles :
font-size : 0.65em
text-anchor : middle
dominant-baseline : central
fill : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-background-color)'
: 'var(--primary-text-color)';
]]]
- id : sensor--value-1
same_as : sensor--value-0
same_as_dxpos : 16
text : Temp
- id : sensor--value-2
same_as : sensor--value-1
same_as_dxpos : 16
text : Humidity
- id : sensor--value-3
same_as : sensor--value-2
same_as_dxpos : 16
text : CO2
- id : sensor--value-4
same_as : sensor--value-3
same_as_dxpos : 16
text : VOC
- id : sensor--value-5
same_as : sensor--value-4
same_as_dxpos : 16
text : PM2.5
# ------------------------------------------------------------------------
# Selected sensor title
# ------------------------------------------------------------------------
- id : selected-title
group : title
entity_index : calc(entity_index_awair)
icons :
- id : icon
xpos : 10
yposc : 50
icon_size : 1
color_stops : ref(awair_color_stop)
show :
item_style : colorstopgradient
names :
- id : name
xpos : 18
ypos : 50
ellipsis : 22
styles :
font-size : 0.9em
text-anchor : start
fill : var(--secondary-text-color)
dominant-baseline : central
horseshoes :
- id : score
xpos : 10
ypos : 50
radius : 5
arc_degrees : 360
flip : both
horseshoe_state :
width : 4
linecap : butt
horseshoe_scale :
width : 2
linecap : butt
styles :
opacity : 0.6
color_stops : ref(awair_color_stop)
show :
horseshoe_style : colorstopgradient
scale_style : colorstop
# ------------------------------------------------------------------------
# Selected sensor value
# ------------------------------------------------------------------------
- id : selected-value
group : value
entity_index : calc(entity_index_awair)
states :
- id : state
xpos : 50
ypos : 50
show :
uom : end
styles :
font-size : 1.4em
font-weight : bold
text-anchor : middle
fill : var(--primary-text-color)
rectangles :
- id : background
fit :
section : states
item_id : state
padding :
x : 1
y : 1
radius : 2
show :
item_style : colorstopgradient
colorstopgradient :
fill : true
stroke : true
color_stops : ref(awair_color_stop)
styles :
fill-opacity : 0.2
stroke-opacity : 1
stroke-width : 1
# ------------------------------------------------------------------------
# sensor history
# ------------------------------------------------------------------------
- id : selected-history
group : graph
entity_index : calc(entity_index_awair)
sparklines :
- id : graph
xpos : 50
ypos : 50
width : 90
height : 50
margin : 0
period :
type : rolling_window
rolling_window :
duration :
hour : |
[[[
return Number(entities[1].state);
]]]
bins :
per_hour : auto
density : medium
sparkline :
animate : true
show :
chart_type : area
line : true
area : true
fill : fade
points : false
grid : true
axis : true
tickmarks : true
labels : true
xlabels_at : ticks_major
ylabels_at : ticks_major
state_values :
aggregate_func : avg
line :
line_width : 1
show_dots : false
area :
show_minmax : true
color_stops : ref(awair_color_stop)
x_axis :
labels :
styles :
font-size : 0.5em
y_axis :
labels :
styles :
font-size : 0.5em
# ------------------------------------------------------------------------
# History duration selector
# ------------------------------------------------------------------------
- id : duration-selector
group : duration-buttons
entity_index : calc(entity_index_hours)
rectangles :
- id : history-hours--value-1
xpos : 10
ypos : 50
width : 12
height : 10
radius : 2
styles :
fill : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-color)'
: 'var(--secondary-background-color)';
]]]
tap_action :
haptic : selection
action : perform-action
perform_action : fhs_input_number.set_value
target :
entity_id : fhs_input_number.history_hours
data :
value : ref(get_value_from_item_id)
- id : history-hours--value-12
same_as : history-hours--value-1
same_as_dxpos : 16
- id : history-hours--value-24
same_as : history-hours--value-12
same_as_dxpos : 16
- id : history-hours--value-48
same_as : history-hours--value-24
same_as_dxpos : 16
- id : history-hours--value-168
same_as : history-hours--value-48
same_as_dxpos : 16
- id : history-hours--value-336
same_as : history-hours--value-168
same_as_dxpos : 16
texts :
- id : history-hours--value-1
xpos : 10
ypos : 50
text : 1U
styles :
font-size : 0.55em
font-weight : bold
text-anchor : middle
dominant-baseline : central
pointer-events : none
fill : |
[[[
const value = Number(item.id.split('--value-')[1]);
return Number(state) === value
? 'var(--primary-background-color)'
: 'var(--primary-text-color)';
]]]
- id : history-hours--value-12
same_as : history-hours--value-1
same_as_dxpos : 16
text : 12U
- id : history-hours--value-24
same_as : history-hours--value-12
same_as_dxpos : 16
text : 1D
- id : history-hours--value-48
same_as : history-hours--value-24
same_as_dxpos : 16
text : 2D
- id : history-hours--value-168
same_as : history-hours--value-48
same_as_dxpos : 16
text : 1W
- id : history-hours--value-336
same_as : history-hours--value-168
same_as_dxpos : 16
text : 2W
