Flexible Horseshoe Card input select

An Flexible Horseshoe Card input select adds a list of choices directly to a Flexible Horseshoe Card. Use it to choose a room, sensor, chart type, display style, history period, or any other named option used by the card.

The selected option is stored in the current browser and does not require a Home Assistant helper. Use a Home Assistant Input select instead when automations, other dashboards, or other devices need the same selection.

An Flexible Horseshoe Card input select can hold a single data item, of hold rich content such as icons, states, shapes, horseshoes and sparkline graphs.

Single item example:

Flexible Horseshoe select control example 3

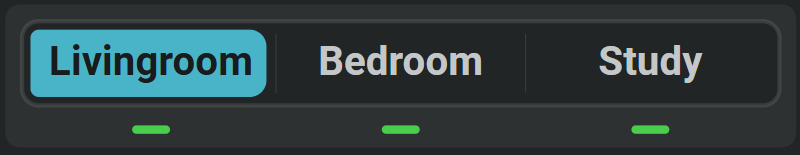

Two items, text and indicator line example:

Flexible Horseshoe select control example 1

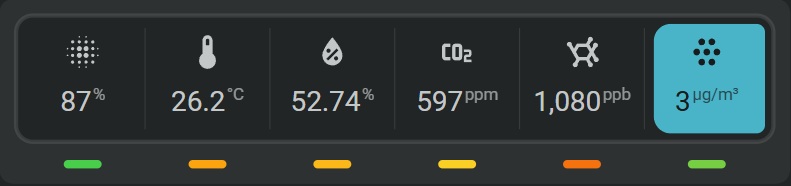

Multiple items, icon, state and indicator line example:

Flexible Horseshoe select control example 2

The indicator line is shifted downwards in these two examples

That is part of the extended configuration settings. By default all content is equally positioned and spaced in the select control button.

Basic configuration

Add the input to the card's entities list. Its entity ID must start with fhs_input_select..

1
2
3
4
5
6
7
8
9
entities:
  - entity: fhs_input_select.chart_type
    options:
      - line
      - area
      - bar
      - dots
    initial: line
    scope: card

Connect a select control to the input:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
layout:
  controls:
    - id: chart-type
      type: select
      entity_index: 0
      xpos: 50
      ypos: 85
      width: 90
      height: 12
      show:
        item_variant: segmented
        item_viz: viz_button
        item_style: outlined_round

The control displays the options from the input and stores the selected option as its state. Add an option_map to the control only when you want to show different labels, icons, or richer content.

Configuration options

Option Description
entity A unique entity ID starting with fhs_input_select..
options The list of values the user can choose from.
initial Option selected when the input is created. The first option is used when omitted.
scope: card Keeps a separate selection for this card.
scope: global Shares the selection with Flexible Horseshoe Card cards in the current browser.
persist: true Restores a global selection after the browser reloads.
name Name shown by tools that display the entity name.
icon Icon shown by tools that display the entity icon.

See Entities for slots and other entity settings.

Note

Quote option names such as on, off, yes, and no when they must remain text values in YAML.

Use the selected option in a card

The selected option is available directly as the input state. This example lets the input choose the sparkline chart type:

1
2
3
4
5
6
sparkline:
  show:
    chart_type: |
      [[[
        return entities[0].state;
      ]]]

The same pattern can select a room, switch between card layouts, or choose which sensor a card displays.

List of actions

A select control changes the selected option directly. Buttons and other actionable tools can use this action:

Action Result
fhs_input_select.select_option Selects one option from the configured list.
1
2
3
4
5
6
7
tap_action:
  action: perform-action
  perform_action: fhs_input_select.select_option
  target:
    entity_id: fhs_input_select.chart_type
  data:
    option: area

Keep the selection after reloading

Use scope: global with persist: true when the selected option should remain active after reloading the dashboard:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
entities:
  - entity: fhs_input_select.chart_type
    options:
      - line
      - area
      - bar
      - dots
    initial: line
    scope: global
    persist: true

Every Flexible Horseshoe Card card in the current browser that defines fhs_input_select.chart_type receives the same selection. Other browsers and devices keep their own selection.
